Cavity Backed Dual Arm Archimedean Spiral Antenna
| # | Model | Frequency | Bandwidth | Gain | Download | Enquiry |
| 1. | SAS | 300 – 3000 MHz | Full Band | 3 – 6 dBi |  |  |

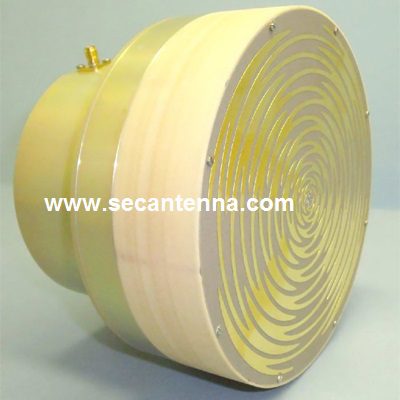

We manufacture Cavity Backed Dual Arm Archimedean Spiral Antenna for 300 – 3000 MHz frequency band. Our antenna design reflects innovative modern antenna construction.
These antenna have been constructed in high quality heavy duty aluminium alloys to prevent corrosion. This Antenna when packed comes with full mounting hardware.It also has a full band bandwidth.
Spiral Antenna is one of the best antenna for research work in Electronics communication field. In spiral antenna, behind the radiating elements a special type of cavity pattern is present to minimize the back radiation and reduces the back radiation noise.
We are pleased to supply these antenna with, customized connector, any specified paint colour or any custom finish as per customer request.
Our antennas are designed and manufactured to provide the best gain figures, for the requirements of the band and for the specific research application where the antenna will be used.
Cavity Backed Dual Arm Archimedean Spiral Antenna for Broadband RF Applications
A Cavity Backed Dual Arm Archimedean Spiral Antenna is designed for RF and microwave applications that require broadband operation, stable radiation characteristics, and reliable signal performance. Its spiral geometry supports wide frequency coverage, while the cavity-backed structure helps control the antenna’s radiation characteristics. Sec-Antenna develops specialized antenna solutions for demanding communication, electronic warfare, monitoring, and RF system requirements.
What Is a Cavity Backed Dual Arm Archimedean Spiral Antenna?
A Cavity Backed Dual Arm Archimedean Spiral Antenna uses two spiral arms arranged around a central point and supported by a conductive cavity. The Archimedean spiral geometry allows the antenna to operate across a broad frequency range, making it suitable for systems where frequency flexibility is important.
The cavity provides a controlled electromagnetic environment behind the spiral element. This can help manage unwanted radiation and improve the directional characteristics of the antenna. The dual-arm configuration also supports balanced operation and can be designed for circular polarization in suitable applications.
Key Features of Dual Arm Archimedean Spiral Antenna
A Dual Arm Archimedean Spiral Antenna offers several characteristics that make it useful for advanced RF systems. Its broadband nature allows one antenna design to cover multiple frequencies, reducing the need for separate antennas across different operating bands.
The dual-arm structure can provide circularly polarized radiation, which is valuable for communication and signal-detection applications where polarization changes may occur. The spiral geometry also supports consistent frequency-independent behavior over an appropriate operating range.
The cavity-backed construction can further improve control over the antenna’s radiation pattern. Depending on the engineering requirements, a Dual Arm Archimedean Spiral Antenna can be configured for specific frequency bands, polarization requirements, gain levels, and mechanical dimensions.
Applications
A Cavity Backed Dual Arm Archimedean Spiral Antenna can be used in various professional RF applications. Potential applications include electronic warfare systems, direction finding, spectrum monitoring, signal intelligence, broadband communication systems, radar-related equipment, and RF measurement platforms.
Because broadband performance is an important characteristic of this antenna type, it can be useful in systems that need to receive signals across multiple frequency bands. Its compact spiral geometry can also make it suitable for specialized platforms where available installation space is limited.
For advanced RF installations, antenna selection should consider operating frequency, polarization, gain, radiation pattern, impedance, connector configuration, and environmental requirements.
Why Choose a Cavity-Backed Design?
The cavity-backed structure provides additional control over electromagnetic radiation compared with an exposed spiral configuration. It can help reduce radiation toward the rear of the antenna while supporting a more controlled forward radiation pattern.
A Dual Arm Archimedean Spiral Antenna with a properly designed cavity can therefore be considered when both broadband operation and controlled radiation characteristics are required. Mechanical construction is also important for maintaining reliable performance in demanding operating environments.
Sec-Antenna RF Solutions
Sec-Antenna focuses on specialized antenna technologies for professional and technical applications. A Cavity Backed Dual Arm Archimedean Spiral Antenna can be developed according to application-specific requirements such as frequency range, polarization, gain, impedance, size, and mounting configuration.
Before selecting an antenna, system designers should evaluate the complete RF requirements rather than focusing on a single specification. Cable losses, receiver characteristics, installation conditions, and electromagnetic surroundings can all influence practical performance.
For systems requiring broadband reception, circular polarization, and controlled directional characteristics, a Cavity Backed Dual Arm Archimedean Spiral Antenna can provide a versatile antenna solution. With appropriate engineering and integration, it can support reliable performance across demanding RF environments.
Sec-Antenna can help organizations identify suitable antenna configurations based on their technical requirements. A Cavity Backed Dual Arm Archimedean Spiral Antenna is an effective option for specialized RF systems where broadband coverage and controlled radiation are key priorities.
