Magnetic Base Mobile Antenna (Magmount antenna)

#Model FrequencyBandwidthGainDownloadEnquiry
1. SM66-M66 – 88 MHz5 MHz0 dBdpdf data sheetEmail enquiry
2. SM118-M118 – 135 MHz10 MHz0 dBdpdf data sheetEmail enquiry

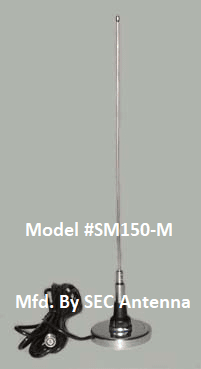

3. SM150-M136 – 174 MHz10 MHz0 dBdpdf data sheetEmail enquiry
4. SM150G3-M136 – 174 MHz10 MHz3 dBdpdf data sheetEmail enquiry
5. SM400-M380 – 400 MHz20 MHz0 dBdpdf data sheetEmail enquiry
6. SM450-M403 – 520 MHz20 MHz0 dBdpdf data sheetEmail enquiry
7. SM450G3-M403 – 470 MHz20 MHz3 dBdpdf data sheetEmail enquiry

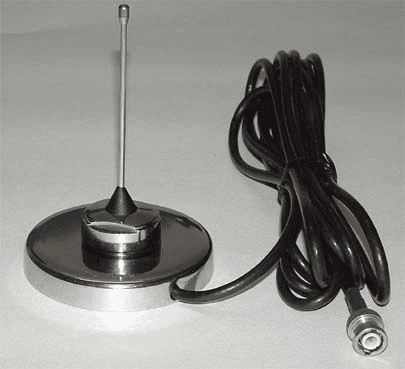

8. SM900-M806 – 960 MHz60 MHz0 dBdpdf data sheetEmail enquiry
9. SM850G3-M806 – 870 MHz60 MHz3 dBdpdf data sheetEmail enquiry

Magnetic Base Mobile Antenna Details:

CONSTRUCTION:

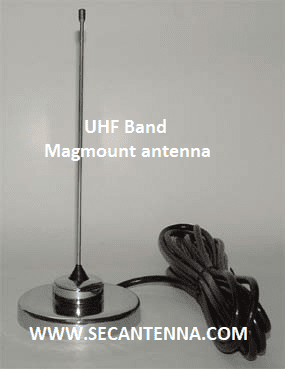

We make magnetic base mobile Antenna for VHF, UHF, TETRA frequency bands.



Magnetic Base: Our antenna has a compact size strong magnet of 3″ in Diameter. Base is constructed in high quality material with polish and coating is applied to prevent corrosion.

Whip Material: Its thin metal whip is made up of anti-rust Stainless Steel Grade-304. Due to whip hardness its shape did not change easily. Whip made from the finest stainless steel, which resists bending and kinking. Stainless steel that provides high strength and hardness, excellent fatigue properties, good corrosion resistance, and minimum distortion upon heat treatment.

Coax-cable: The Magnetic base mobile antenna when packed comes with 3 meter RG-58 coax cable (By default). Longer coax cable length can be supplied as per request.



INSTALLATION ADVANTAGES:

Magnetic Base mobile antennas offer great performance when installed on a vehicle’s roof. Installation is incredibly easy. Simply set the magnet on the roof of the car and then route the coax cable into the car (through a window, door frame or drilled hole) to connect to the radio.



RECOMMENDED USES:

Due to high convenience and performance of magnetic base mobile antennas are popular with cars, vans, SUVs and pick-up trucks.

Vehicle magnetic base mount antennas are available in different models.

All models are mounted at the roof of the vehicle providing the maximum communication range and perfect Omni directional coverage.
