Portable Tripod Antenna Mast
|Portable Tripod Mast|
|S.No||Model||Mast Height||No. of Sections||Mounting Pipe Dia.||Base Diameter||Weight||Material|
|1||SPTM130||130 cm||1||51mm (2″ inch)||180 cm||21 Kg (46 lb)||Stainless Steel||Data sheet|
|2||SPTM200||200 cm||1||51mm (2″ inch)||180 cm||23 Kg (50.5 lb)||Stainless Steel||Data sheet|
|3||SPTM300||300 cm||2||51mm (2″ inch)||210 cm||26 Kg (57 lb)||Stainless Steel||Data sheet|
|4||SPTM370||370 cm||2||51mm (2″ inch)||210 cm||28 Kg (61.5 lb)||Stainless Steel||Data sheet|
SPTM Model Series

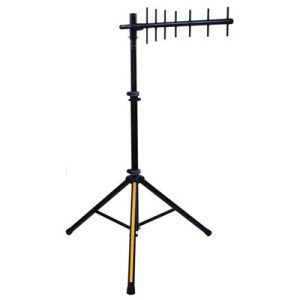

SMART ELECTRONICS COMMUNICATION offer its SPTM model series portable tripod MAST of stainless steel and aluminum material. Typical applications of these masts are for supporting small omni-directional antennas and directional antennas like log periodic dipole or yagi antennas. These portable tripod MASTS are very handy in research and development departments for indoor or outdoor testing purpose. We offer portable tripod masts in two different materials aluminum and stainless steel. Theses portable tripod masts are so handy that even a single person can install them with ease just by tightening few nut and screws. The application of portable tripod mast is numerous, one can install them on a roof, garden, truck, laboratories etc.
|S.no||Model||Mast Height||No. of Sections||Guys Radius||No. of Guys||Pipe O.D.||Wind Speed||Weight|
|1||STM – 6||6.0 m||4||4 m||2 x 3||51 mm||40 m/sec||24 kgs|
|2||STM – 9||9.0 m||5||5 m||2 x 3||51 mm||38 m/sec||28 kgs|
|3||STM – 12||12.0 m||6||6 m||2 x 3||51 mm||34 m/sec||36 kgs|
STM Model Series
SMART ELECTRONICS COMMUNICATION offer its STM series aluminum tubular masts. Typical applications of these masts are for supporting small omni-directional antennas and log periodic antennas. A HF broadband dipole antenna can also be installed by using two similar masts. These masts are made of aluminum tubular section, which can be used for fixed or transportable applications. Their simplicity allows for ease of installation and transportation.
The sectional masts are constructed of aluminum tube with one end swaged to accept the next section. The sections are supplied having 1.8 Meter lengths of each section. The mast uses Two or Three sets of guy wire to facilitate installation depending on the height of masts. The pivot base allows for east tilt-up during installation by two men.
