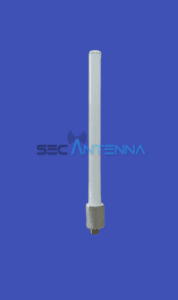

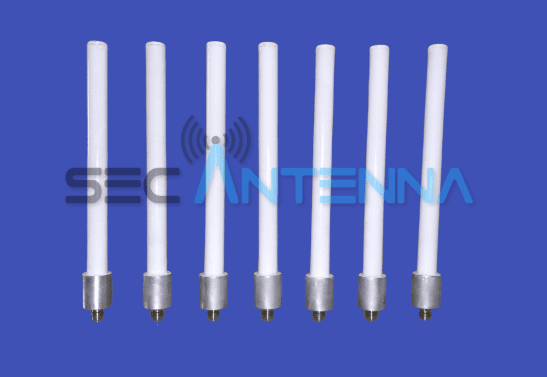

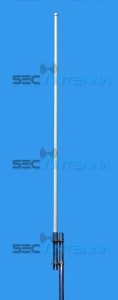

Fiberglass Omnidirectional Collinear Antenna

#
Model FrequencyBandwidthGainDownloadEnquiry
1.
SCL50G330 – 88 MHz5 MHz3 dBi
2.
SCL118G3118 – 135 MHz5 MHz3 dBi
3.
SCL118G6118 – 135 MHz5 MHz6 dBi
4.
SCL150G3136 – 174 MHz10 MHz3 dBi
5.
SCL150G6136 – 174 MHz10 MHz6 dBi
6.
SCL150G9136 – 174 MHz10 MHz9 dBi
7.
SCL450G6300 – 520 MHz30 MHz6 dBi
8.
SCL450G9300 – 520 MHz30 MHz9 dBiSCL450G9 data sheet
9.
SCL450G12300 – 520 MHz30 MHz12 dBi
10.
SCL650G6400 – 800 MHz400 MHz6 dBi
11.
SCL850G9800 – 990 MHz90 MHz9 dBi
12.
SCL850G12800 – 990 MHz90 MHz12 dBi
13.
SCL1150G121000 – 1250 MHz100 MHz12 dBi
14.
SCL1450G121300 – 1550 MHz100 MHz12 dBi
15.
SCL1850G121600 – 2100 MHz150 MHz12 dBi
16.
SCL2700G122500 – 2950 MHz150 MHz12 dBi

SCL Model Series

SEC Antenna uses the very latest design and manufacturing technology methods to produce Omni-directional Fiberglass Collinear antenna, having following features:

  1. Innovative design for unique quality of omni-directional monopole antenna.

  2. High gain and omni directional pattern of fiber glass coaxial antenna.

  3. Low VSWR for the whole operating frequency band of fiberglass collinear antenna.

  4. High performance in worst environmental conditions due to its rigid and very strong fiberglass radome and aluminium alloy body.

  5. Heavy Duty material is used to manufacture fiberglass omni-directional collinear antenna.

Special mounting hardware is supplied with the fiberglass Omni directional collinear antenna for mounting. If you need some other mounting hardware for fiberglass  omni directional collinear antenna, we will manufacture it for you and supply it with our manufactured collinear antenna.

Our antennas are designed and manufactured to provide the best gain figures, for the requirements of the single band, double band, tri band or for any specific application where the wireless fiberglass collinear antenna will be used.
