Omni Directional Folded Dipole Array Antenna

#Model FrequencyBandwidthGain: omni / offsetDownloadEnquiry
1. S2D6666 – 88 MHz10 MHz3 dBd / 6 dBdpdf data sheet
2. S2D118118 – 135 MHz17 MHz3 dBd / 6 dBdpdf data sheet
3. S2D150136 – 174 MHz25 MHz3 dBd / 6 dBdpdf data sheetEmail enquiry
4. S2D450300 – 520 MHz30 MHz3 dBd / 6 dBdpdf data sheetEmail enquiry
5. S4D6666 – 88 MHz10 MHz6 dBd / 9 dBdpdf data sheetEmail enquiry
6. S4D118118 – 135 MHz17 MHz6 dBd / 9 dBdpdf data sheetEmail enquiry
7. S4D150136 – 174 MHz25 MHz6 dBd / 9 dBdpdf data sheetEmail enquiry
8. S4D450300 – 520 MHz30 MHz6 dBd / 9 dBdpdf data sheetEmail enquiry
9. S8D150136 – 174 MHz25 MHz9 dBd / 12 dBdpdf data sheetEmail enquiry
10. S8D450300 – 520 MHz30 MHz9 dBd / 12 dBdpdf data sheetEmail enquiry

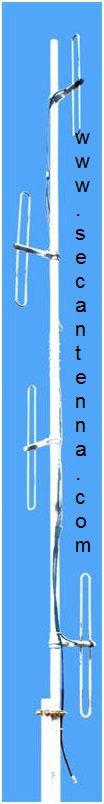

S2D, S4D & S8D Model Series

This series is used to improve the gain of Omni Directional Folded Dipole Antenna via making a array of omni-directional folded dipoles and hence the antenna is called Omni Directional Folded Dipole Array Antenna. These Omni Directional Folded Dipoles are combined using a splitter cable. This splitter cable provides same phase difference to each dipoles.

The Omni Directional Folded Dipole Array Antenna comes with the splitter cable attached to each Omni Directional Folded Dipoles. And all Omni Directional Folded Dipoles are marked according to their positions on the centre support pipe for easy and quick installation.

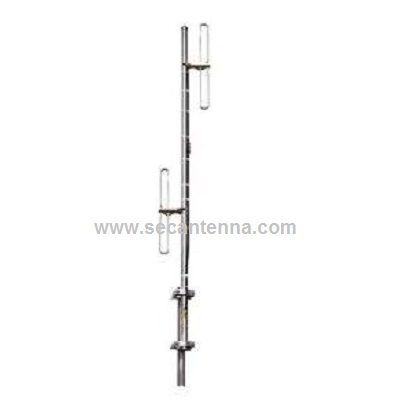

folded dipole array antenna
